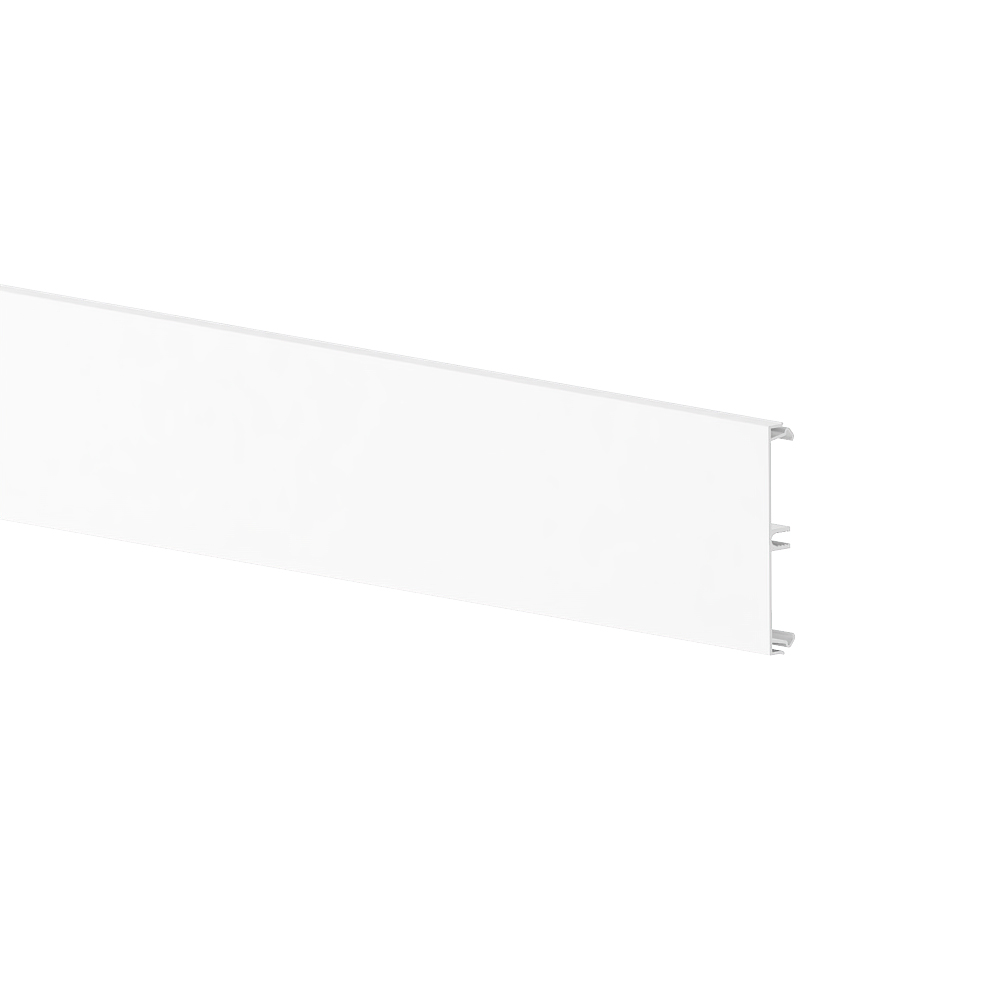

Cover BRA-OT 80-9010, wall trunking 80 mm width, aluminium, pure white
| Manufacturer | GGK |
| Item number | 11738 |
| List price excl. VAT | on request |
| Product group | 20-Wall installation |
| Packing unit | 16 meters |
| EAN code | 4018475283497 |
| Tariff number | 76109090 |
| Product status |
Core range
|
Cover for aluminium wall trunking according to DIN EN 50085-2-1, internal to snap into the base, with earthing groove for equipotential bonding, can be used for all aluminium wall trunkings with a 76.5 mm wide fixing track.
| Width | 80 mm |
| Length | 2000 mm |
| Model | Smooth |
| Mounting method cover | Inner lying |
| Mounting of cover | snap on |
| Tamperproof fixing | no |
| Material | aluminium |
| Halogen free | yes |
| Anti-bacterial treatment | no |
| Surface protection | coated |
| Colour | white |
| RAL-number | 9010 |
| With protective foil | no |
| Operating temperature | from -5 to 60 °C |
Please visit our Downloads section.
