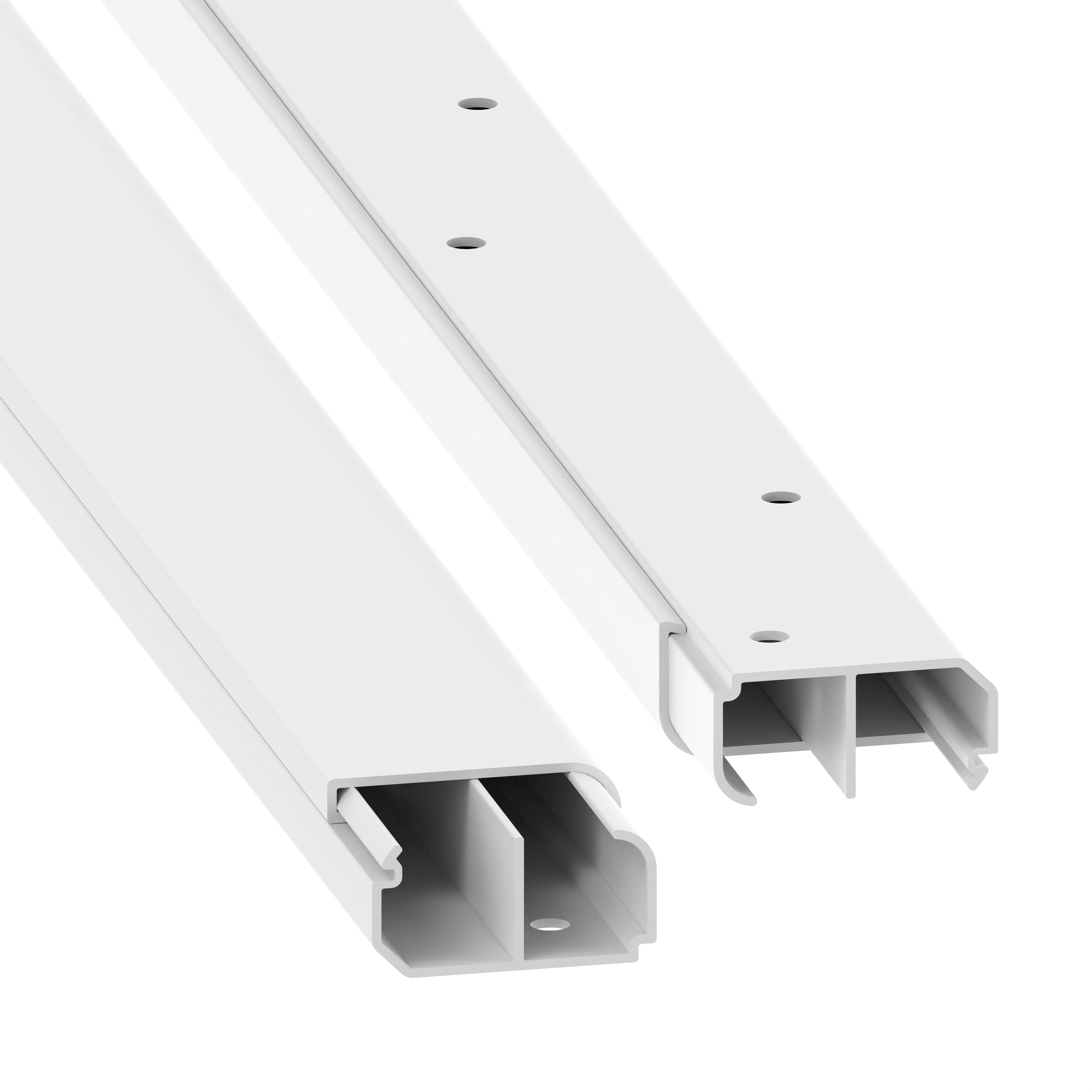

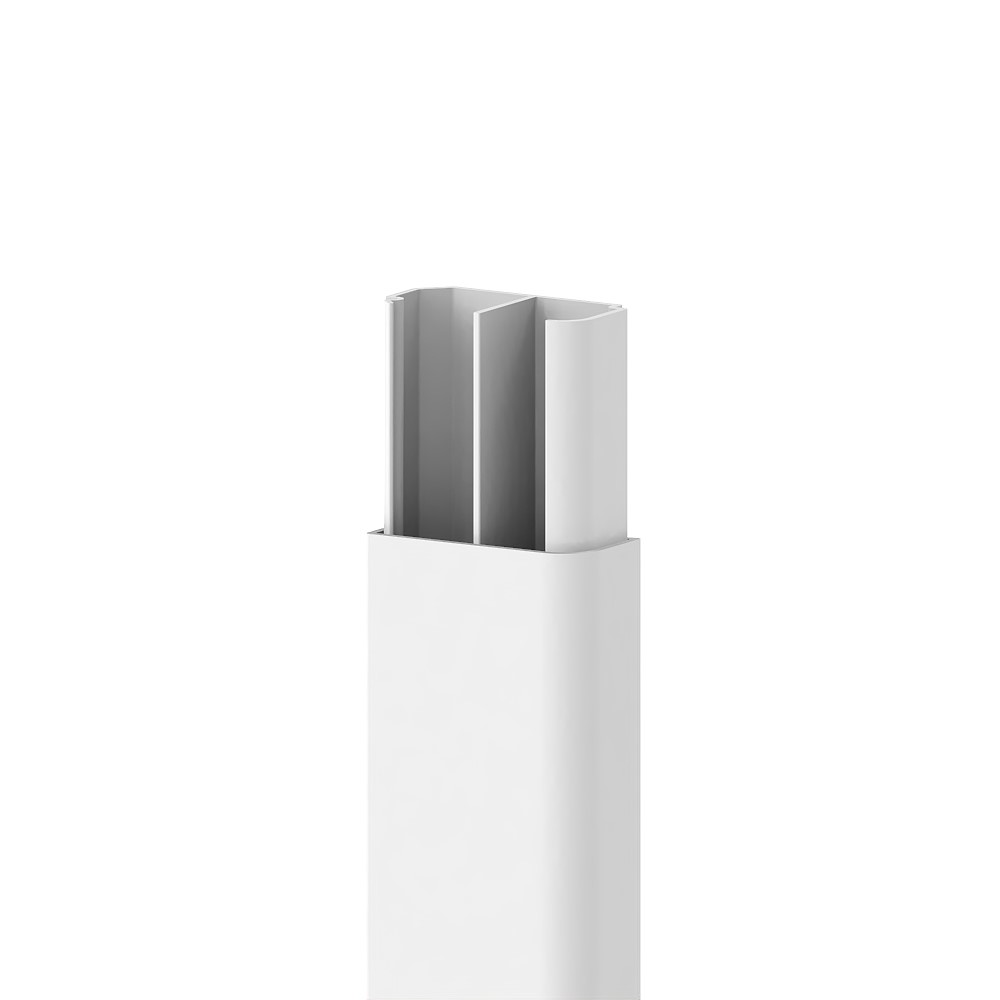

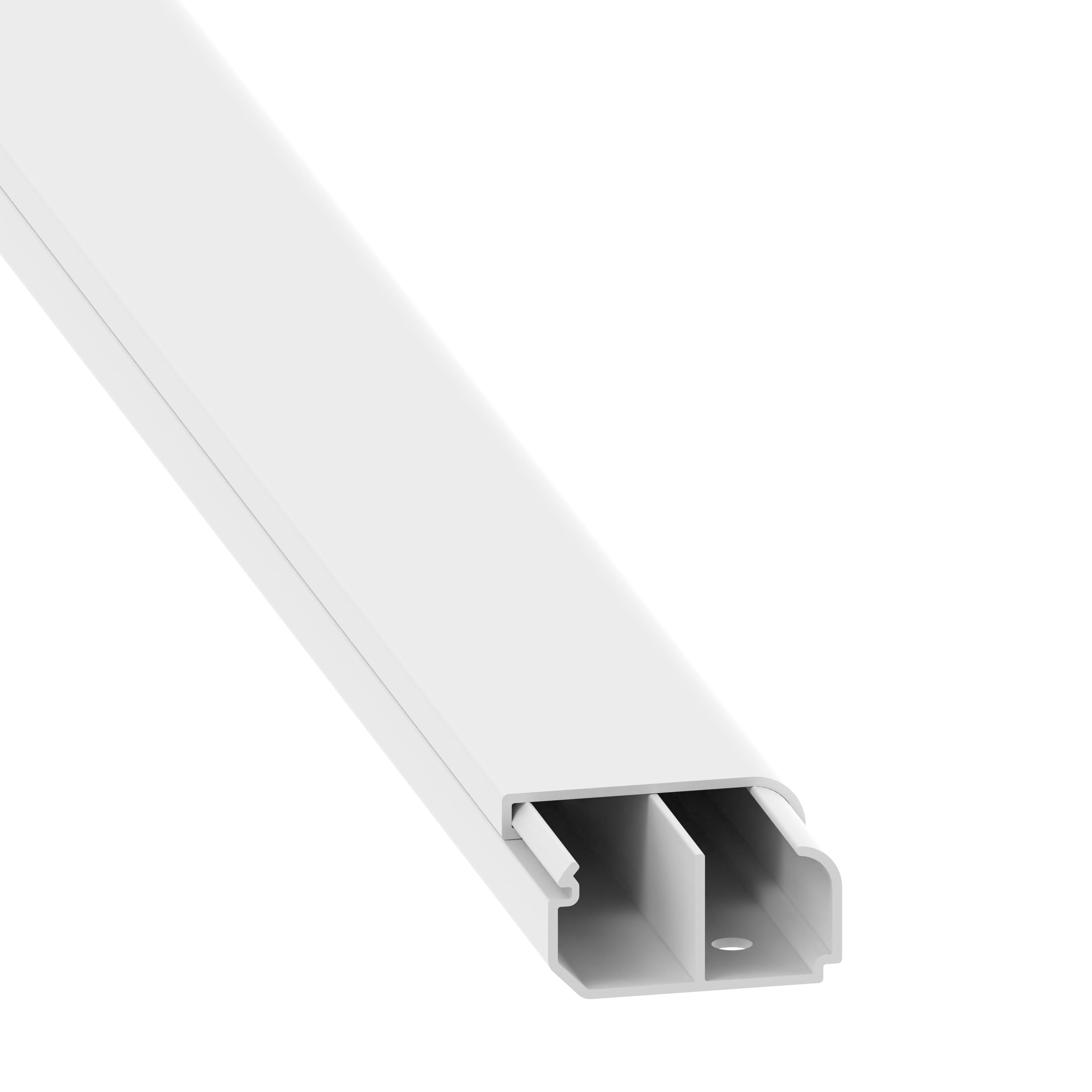

Corner duct EK 15x35-9010, PVC, 2 chambers, pure white (2x1,25 m)
| Manufacturer | GGK |
| Item number | ws10216 |
| List price excl. VAT | on request |
| Product group | 70-Residential installation |
| Packing unit | 375 pieces |
| EAN code | 4018475344679 |
| Tariff number | 39259020 |
| Product status |
Core range
|
PVC installation trunking according to DIN EN 50085-2-1, for routing cables in room corners (wall and ceiling), especially suitable for routing cables from floor to floor, consisting of completely overlapping cover and base with base perforation for fixing in a corner and with fixed partition. Note: The cover can also be painted over or covered with wallpaper if required.

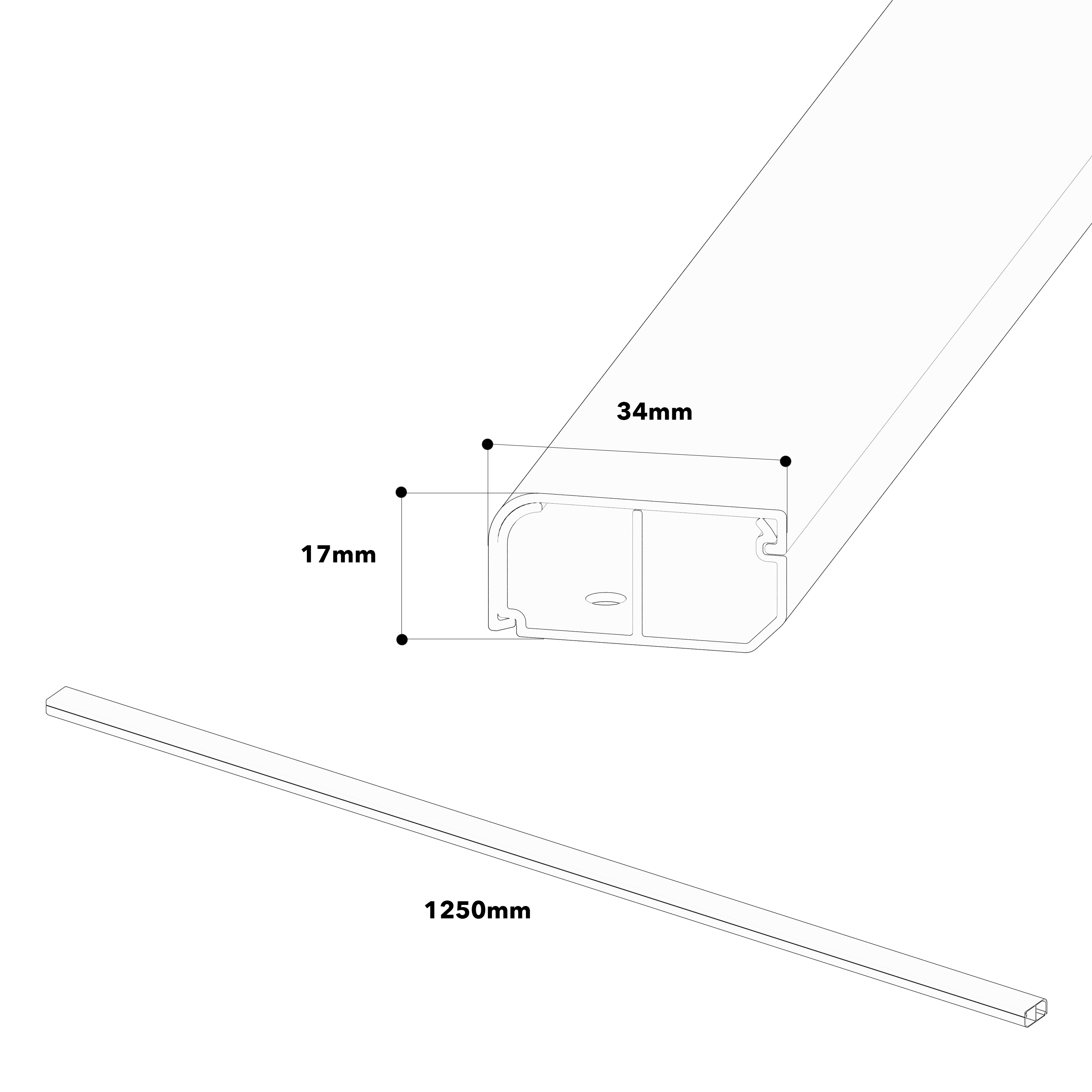

| Height | 17 mm |
| Width | 34 mm |
| Leg length | 34 mm |
| Length | 1250 mm |
| Useful cross section | 390 mm² |
| Base with partition | fixed |
| Number of permanent partitions | 1 |
| Number of plug-in partitions | 0 |
| With cable fixing clip | no |
| Material | plastic |
| Halogen free | no |
| Colour | white |
| RAL-number | 9010 |
| With protective foil | no |
| Degree of protection (IP) | IP30 |
| Impact strength | IK07 |
| Surface protection | untreated |
