Appliance box single SL-GT-1 ZS-beech, with central disc for data socket, beech
| Manufacturer | GGK |
| Item number | 4007 |
| List price excl. VAT | 41,25 EUR / piece |
| Product group | 70-Residential installation |
| Packing unit | 1 piece |
| EAN code | 4018475234451 |
| Tariff number | 85381000 |
| Product status |
Core range
|

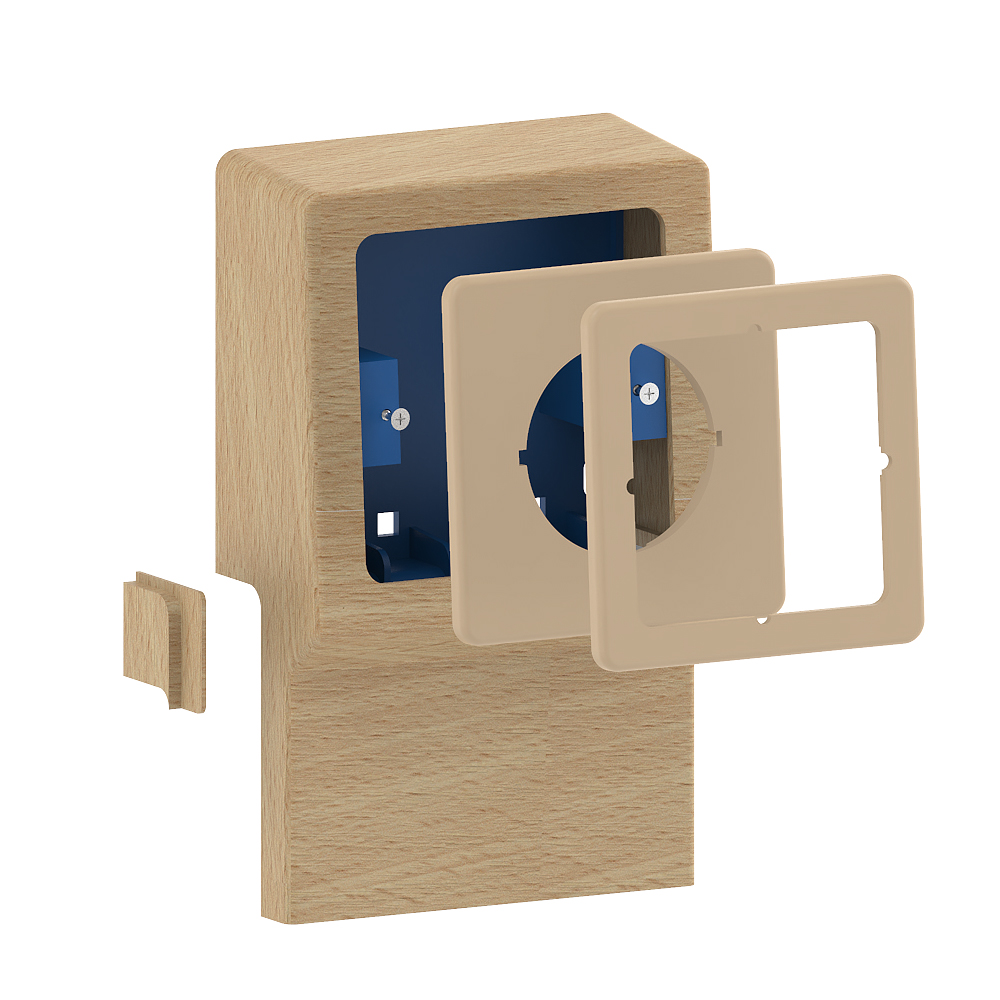

Appliance box for the skirting trunking, with round and angular central disc for device installation of data sockets, device support base with four fixing points for screwing above the skirting trunking base. With the aid of the enclosed compensating pieces, the gear tray can be used for both profile heights of the skirting trunking (SL 20x50 and SL 20x70). Note: The covers of the skirting trunking can be pushed sideways under the cover of the equipment support, whereby the cover of the equipment support performs a cut-covering function for the covers of the skirting trunking.

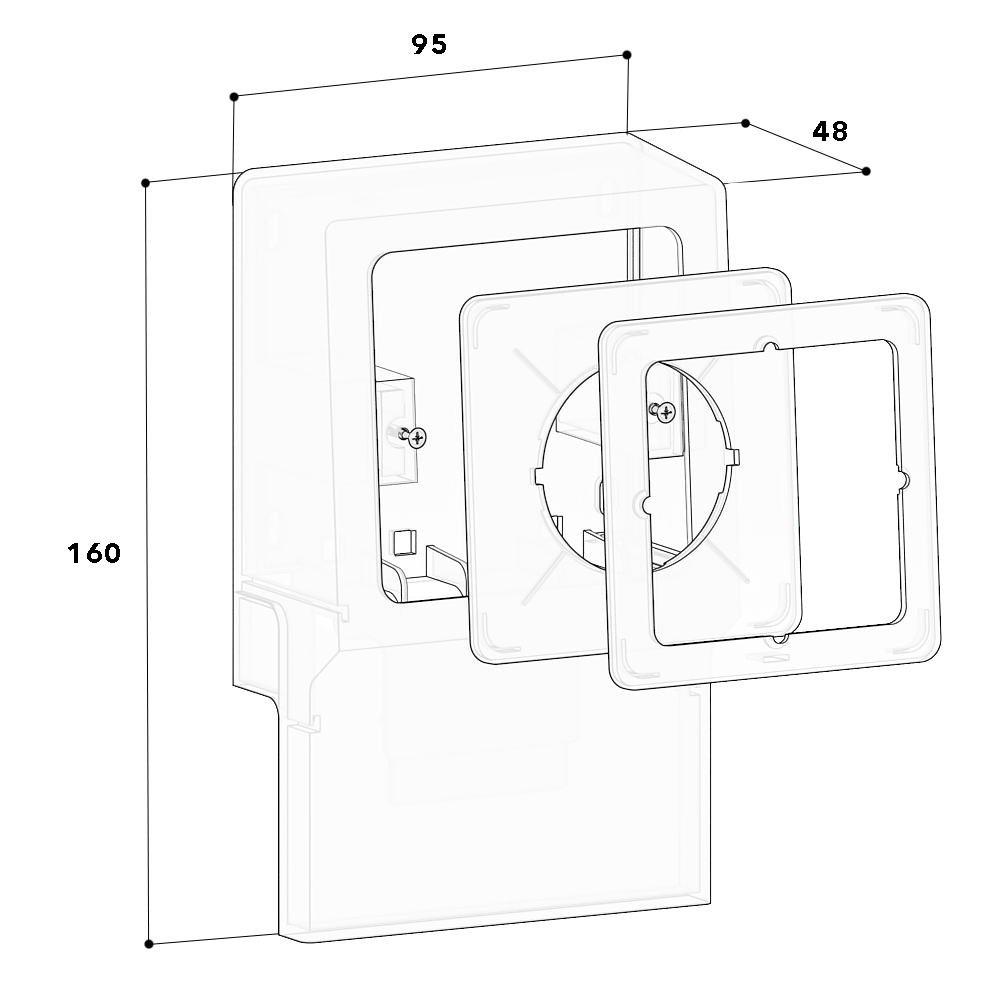

| Height baseboard duct | 70 mm |
| Depth plinth skirting duct | 20 mm |
| Number of device units | 1 |
| Equipped with | without |
| Mounting method installation unit | with central disc |
| Mounting direction | Horizontal |
| Material | plastic |
| Halogen free | no |
| Anti-bacterial treatment | no |
| Colour | wood |
| Decoration | Beech |
| Degree of protection (IP) | IP30 |
| Impact strength | IK07 |
| Operating temperature | from -5 to 60 °C |
