Appliance box 4D 20x80-D2, for two devices 45x45 mm, white

Manufacturer GGK
Item number 114315
List price excl. VAT 28,17 EUR / piece
Product group 75-4D
Packing unit 14 pieces
EAN code 4018475347458
Tariff number 39259020
Product status
Core range

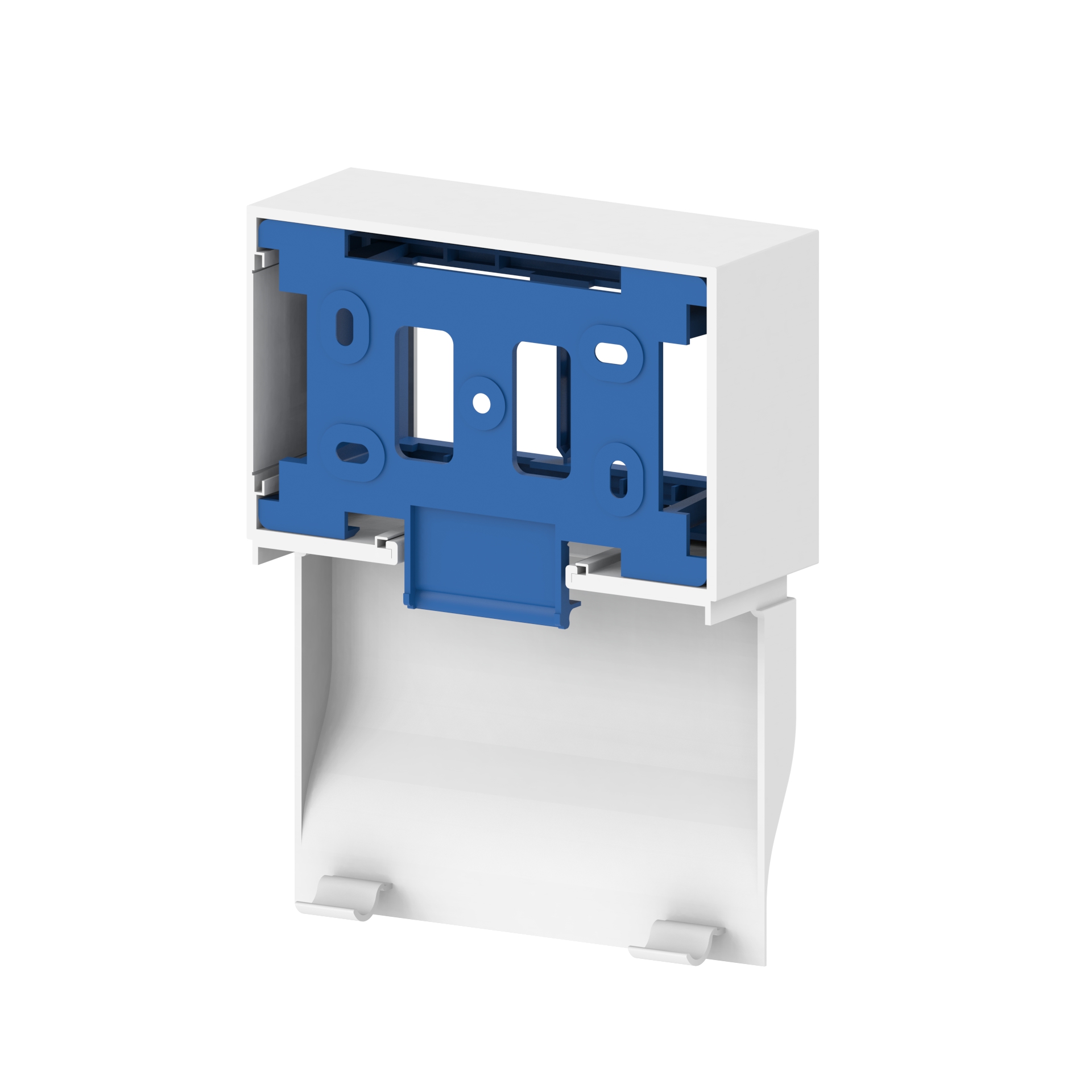

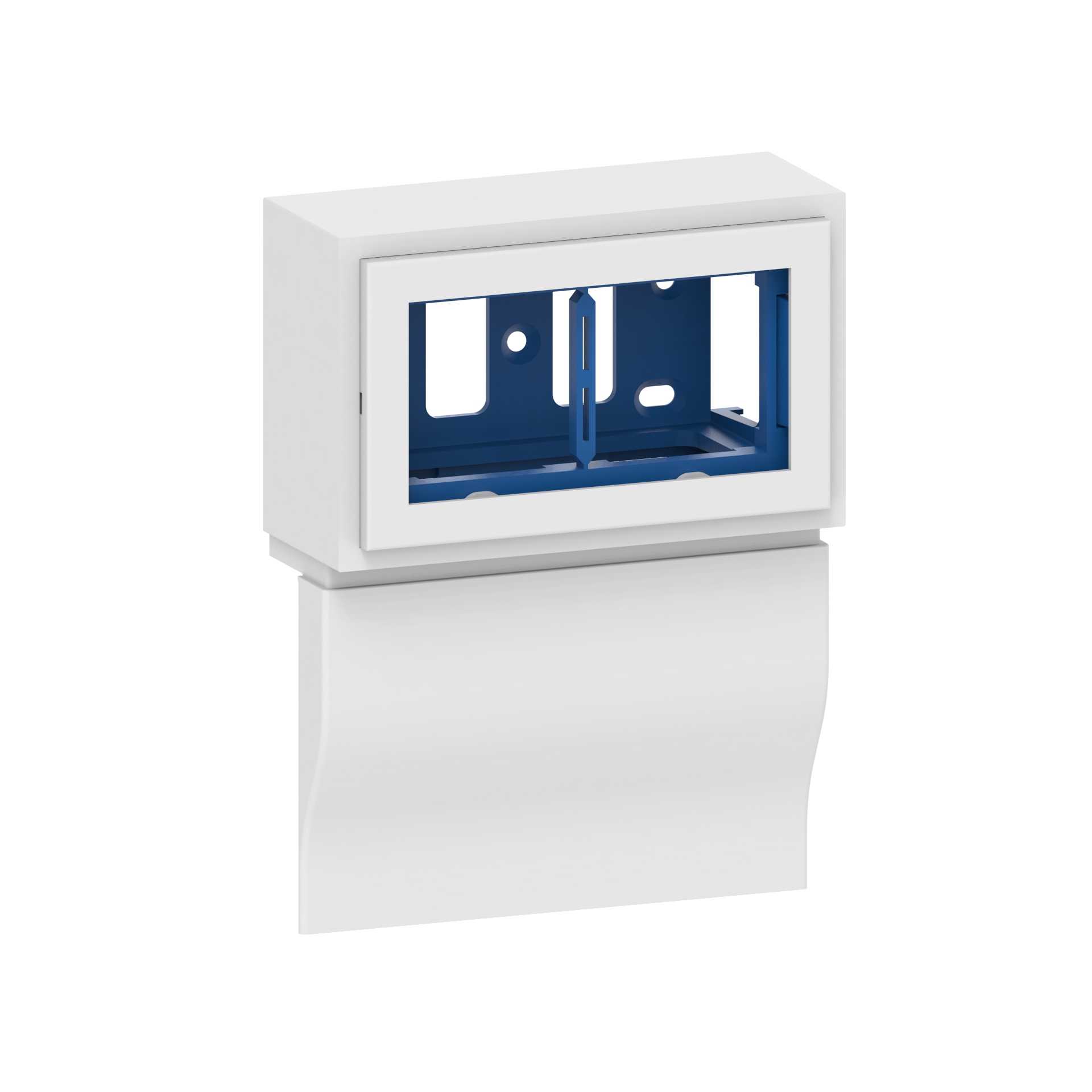

Appliance box for the 4D E skirting trunking, for device installation of two compact M45 built-in devices in 45x45 mm format (e.g. socket outlet, data socket outlet, antenna socket outlet, USB charging socket outlet, switch), device support with transition cover to the skirting and support profile including fixing material for screwing above the skirting trunking base. Note: The covers of the skirting trunking can be slid sideways under the transition cover of the device support, whereby the transition cover of the device support performs a cut-covering function for the covers of the skirting trunking.

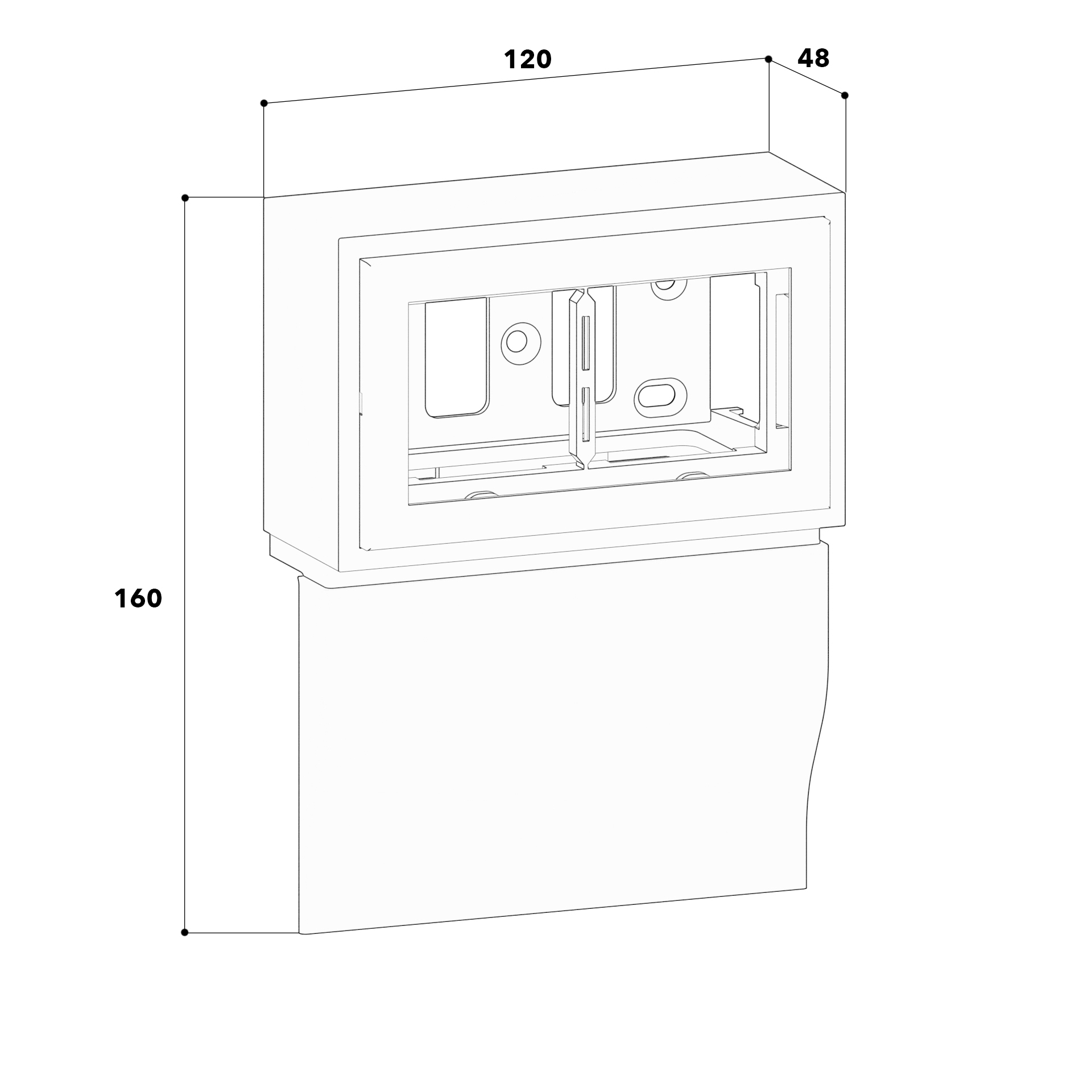

Height baseboard duct 80 mm
Depth plinth skirting duct 20 mm
Number of device units 2
Equipped with without
Mounting method installation unit Standard
Mounting direction Horizontal
Material plastic
Halogen free yes
Anti-bacterial treatment no
Colour white
RAL-number 9010
Decoration without
Degree of protection (IP) IP30
Impact strength IK08
Operating temperature from -5 to 60 °C
